| How to do scarf joints in composite panels by hand. As a batch of panels arrived at Bob Orams place without the ordered scarfs factory cut... a great learning opportunity came about. Bob invited me over with the camera to have a lesson and here it is... |
|

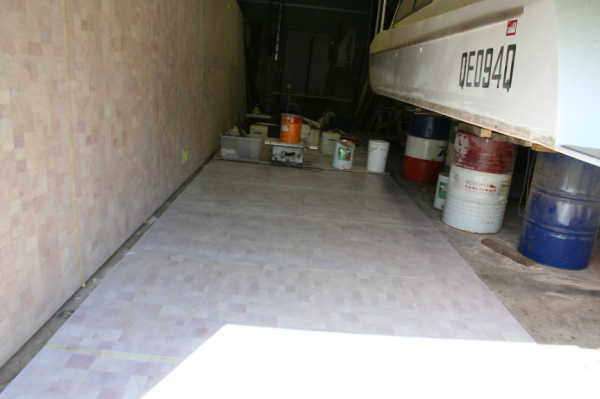

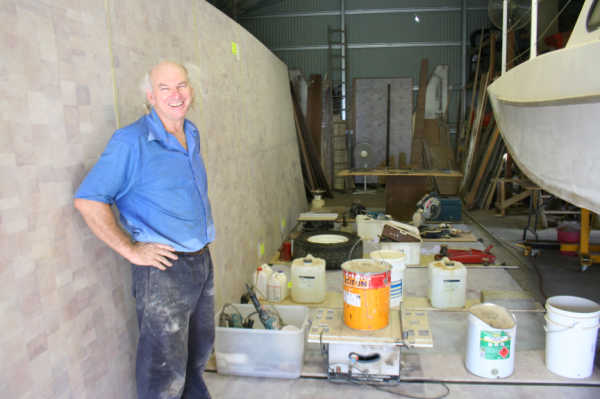

One section is done and leaning against a wall ready for lofting. But what is that pile of shit laying on the floor??
Later for that but lets get started with a demo on a peace of scrap. |
|

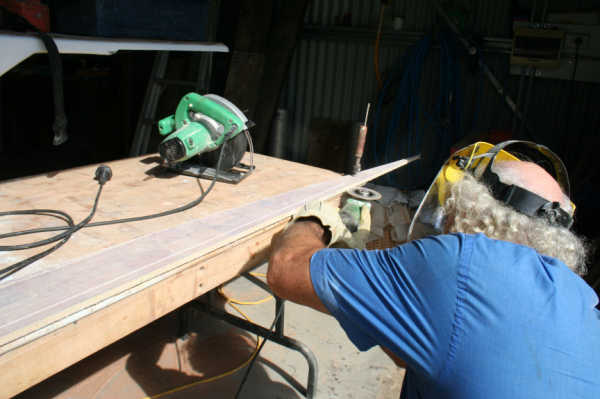

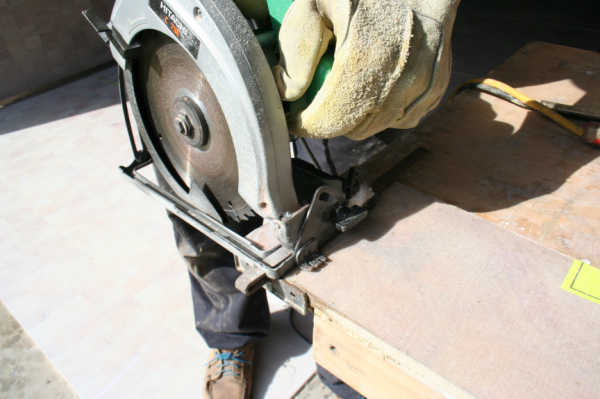

Set your saw to proper depth and width of cut... should have at least a 10mm (3/8") scarf but larger if you like. |
 |
and let her rip... |
 |

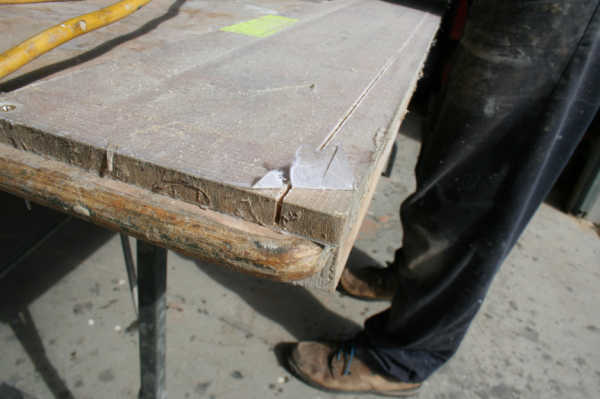

and thats what it should look like.. |
 |

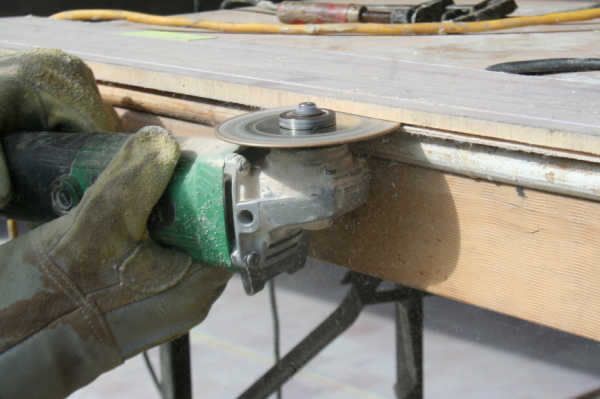

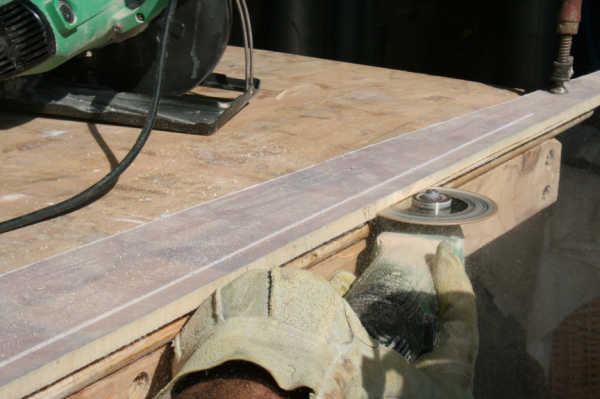

Then mount a diamond blade on your 4" angle grinder and seek the bottom of the composite material but short of the fibreglass. |
 |
Like so... |
 |
Steady........ |
 |
There... |
 |

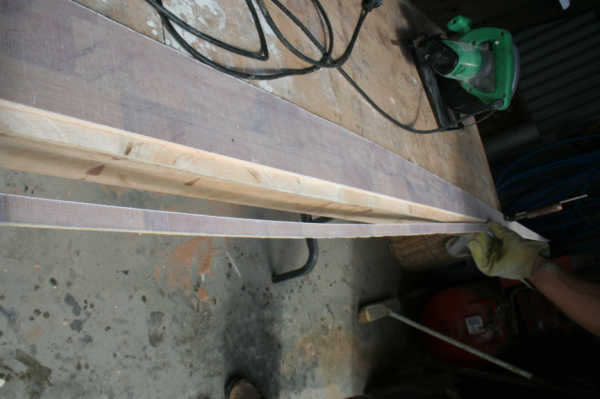

Pull away the scrap.. |
 |

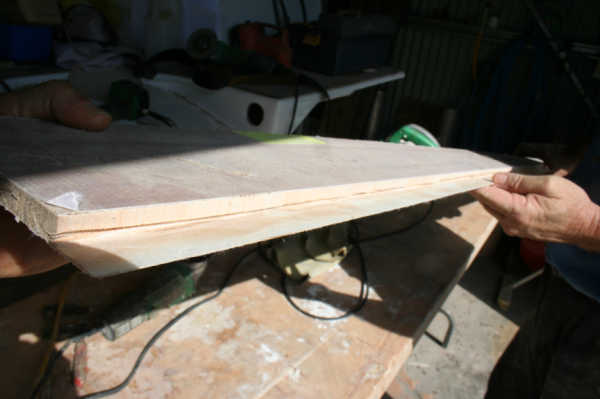

and thats what it should look like so far.. |
 |

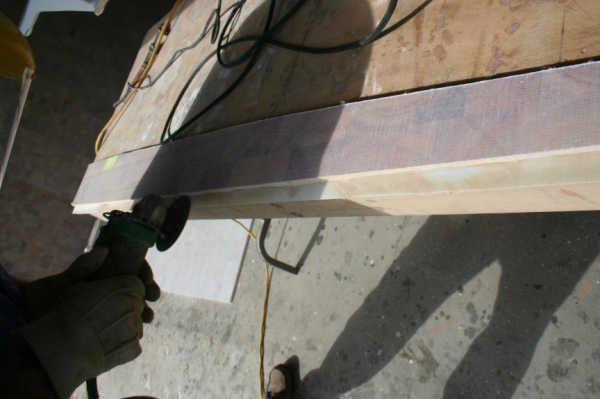

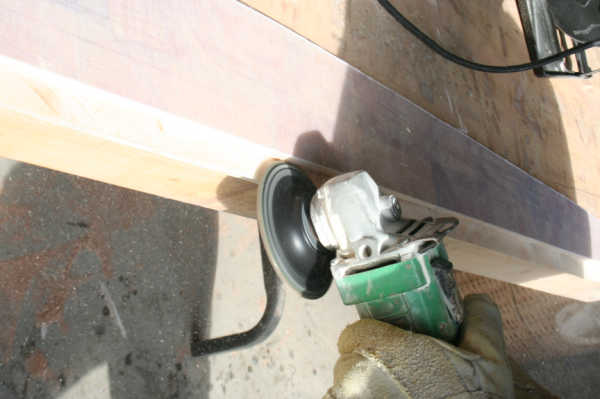

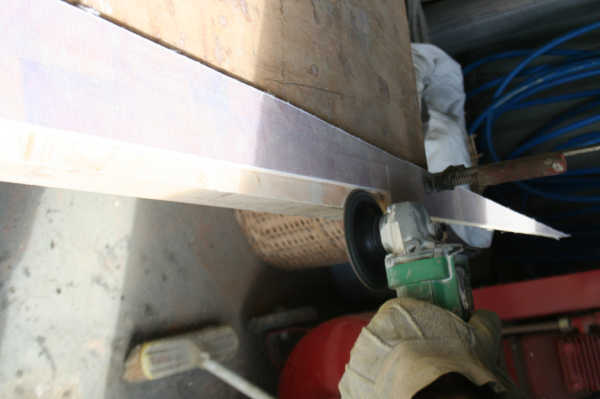

Now mount a sandpaper disc to your angle grinder... |
 |

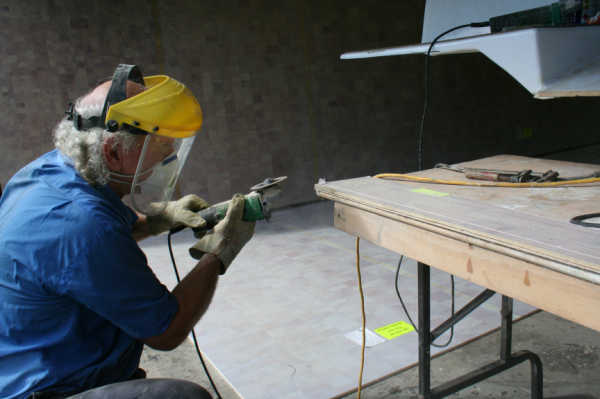

Again.. steady and watch the fibre glass begin to appear but don't savage it.. |
 |
It's OK to undercut the composite a bit but don't go through the glass... |
 |

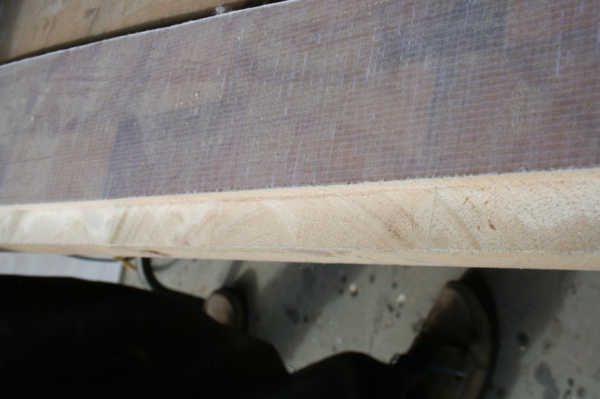

There.. ready to go.. |
 |

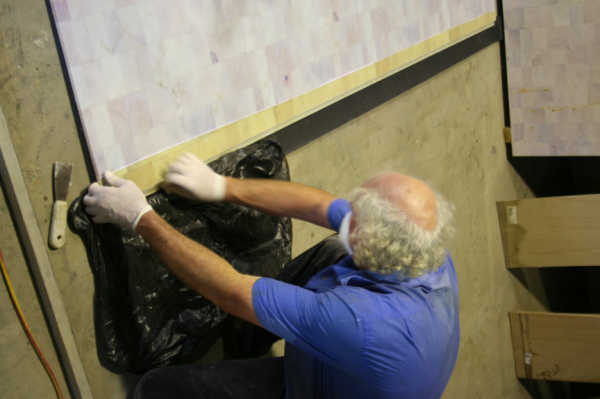

Find some plastic stuff to put under the joint that the epoxy won't stick to.. |
 |
mix up some epoxy and paint it on both surfaces |
 |

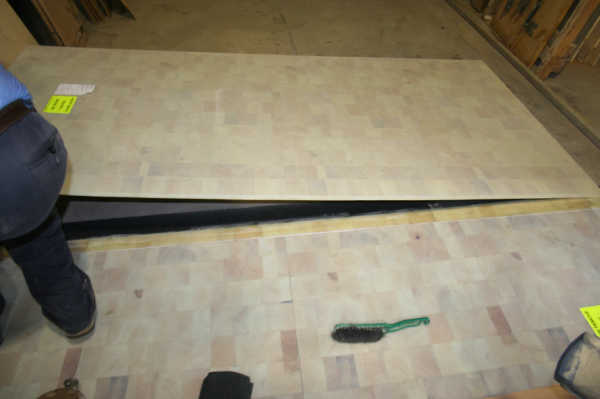

place the other panel |
 |

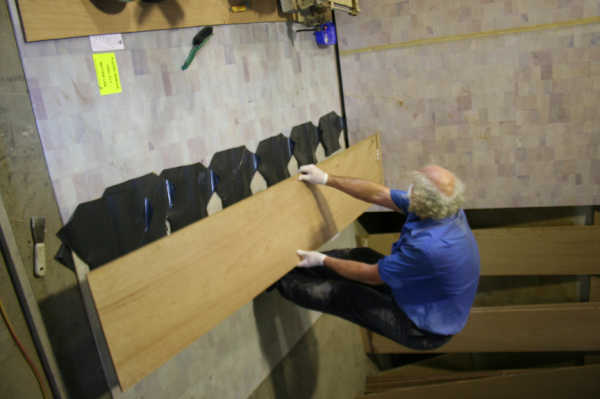

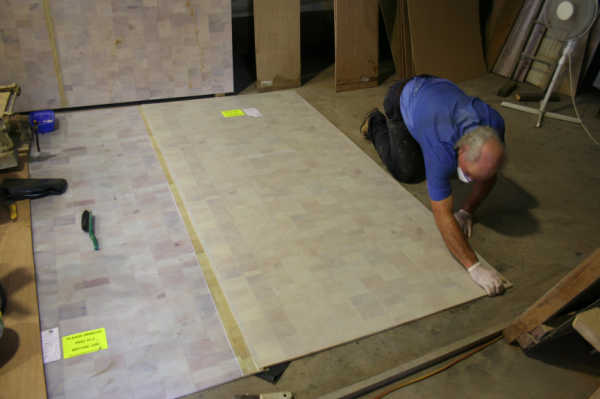

work the panel back and forth whilst putting pressure against it to seat it and drive out any air. |
 |
put some more plastic on top to prevent adhesion to the stuff put on top and... |
 |

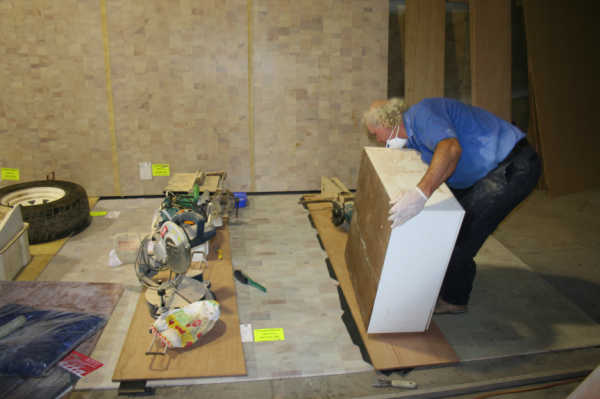

start piling on heavy shit... lots of it.. |
 |
And there you are.. give it a few hours to set and pull the junk off and start marking for very careful cutting. The precision of a CNC router is not possible to reproduce by hand but if you are careful your degree of error should be irrelevant.
A few hours to save a lot of money and if you do it yourself.. you know it's done right. |
